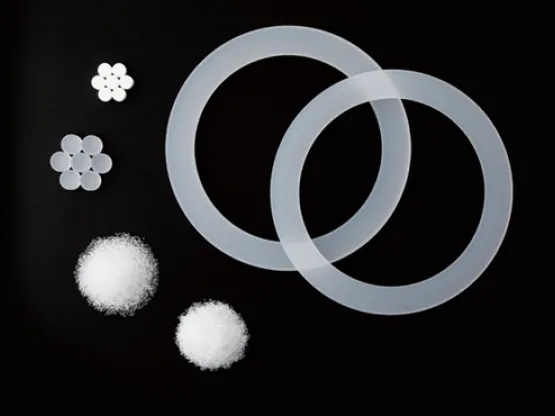

Coating Materials
Various types of optical coatings are needed e.g. in AR, for mirrors, or filters. Specifications can be crucially demanding, with tight spectral tolerances, low defect densities, and high durability requirements. To develop your coating production, our consistent "High-Purity" materials can be produced on your demand.
Low refractive index material
Please see the list with your smartphone or
tablet lying down.
Refractive index | Product name | Chemical formula | Transmittance range(㎛) | MP (℃) | BP (℃) | Density (g/cm3) | Stress | Evaporation source | Granule | Pellet |
---|---|---|---|---|---|---|---|---|---|---|
1.34 | Natrium fluoride | NaF | 0.25-10 | 993 | 1695 | 2.56 | - | E | ○ | - |
1.35 | Cryolite | Na3AlF6 | 0.2-10 | 1000 | - | 2.9 | T+ | M,T,E | ○ | - |
1.36 | Lithium fluoride | LiF | 0.15-7 | 848 | 1676 | 2.64 | T+ | M,E | ○ | - |
1.38 | Magnesium fluoride | MgF2 | 0.2-5 | 1248 | 2260 | 3.18 | T+++ | W,M,T,E | ○ | ○ |
1.40 | Aluminium fluoride | AlF3 | 0.2-20 | 1290 | (sublimation) | 2.88 | T+ | E | ○ | - |
1.40 | Calcium fluoride | CaF2 | 0.15-10 | 1373 | 2500 | 3.18 | - | W,T,E | ○ | ○ |
1.40 | Strontium fluoride | SrF2 | - | 1190 | 2460 | 4.2 | - | E | ○ | - |
1.45 | Zirconium fluoride | ZrF4 | 4-12 | - | sublimes at 600℃ | 4.43 | - | E | ○ | - |
1.47 | Silicon dioxide | SiO2 | 0.2-10 | 1710℃(softening point) | - | 2.2 | C+++ | E | ○ | ○ |
1.48 | Barium fluoride | BaF2 | 0.15-13 | 1354 | 2260 | 4.83 | - | E | ○ | ○ |
1.49 | Yttrium fluoride | YF3 | - | 1152 | 2230 | - | - | E | ○ | - |
Stress
- C:Compressive stress
- T:Tensile stress
- +:Weak
- ++:Medium
- ++:Medium
- +++:Strong
Evaporation source
- E:E-gun
- W:Tungsten boat
- M:Molybdenum boat
- T:Tantalum boat
Medium refractive index material
Please see the list with your smartphone or
tablet lying down.
Refractive index | Product name | Chemical formula | Transmittance range(㎛) | MP (℃) | BP (℃) | Density (g/cm3) | Stress | Evaporation source | Granule | Pellet |
---|---|---|---|---|---|---|---|---|---|---|
1.50 | Germanium oxide | GeO2 | - | 1116 | 1250℃ and over | 4.2 | - | W,M,T,E | ○ | - |
1.50 | OL-B | SiO2+Al2O3 | 0.4-7 | - | - | - | T+ | E | ○ | ○ |
1.59 | Lanthanum fluoride | LaF3 | 0.2-12 | 1493 | 2327 | 5.94 | T+ | E | ○ | - |
1.60 | Neodymium fluoride | NdF3 | 0.2-2 | 1374 | 2327 | 6.51 | T+ | E | ○ | - |
1.62 | Gadolinium fluoride | GdF3 | 0.2-8 | 1231 | 2277 | - | T+ | E | ○ | - |
1.63 | Cerium fluoride | CeF3 | 0.3-10 | 1460 | 2300 | 6.16 | T++ | M,T,E | ○ | - |
1.64 | Aluminium oxide | Al2O3 | 0.2-7 | 2055 | 2980 | 4 | T++ | E | ○ | - |
1.70 | Tungsten oxide | WO3 | - | 1473 | 1750 | 7.16 | 7.16 | W,P,E | ○ | ○ |
1.72 | Magnesium oxide | MgO | 0.2-7 | 2852 | 3600 | 3.58 | T+ | E | ○ | - |
1.75 | Lead fluoride | PbF2 | 0.3-15 | 855 | 1290 | 8.24 | - | W,E | ○ | - |
1.80 | Silicon monoxide | SiO | 0.6-10 | 1700℃ and over | - | 2.24 | T/C | M,T,E | ○ | ○ |
1.84 | Lanthanum oxide | La2O3 | 0.3-8 | 2187-2300 | - | 6.51 | - | E | ○ | - |
1.88 | Yttrium oxide | Y2O3 | 0.3-8 | 2356-2435 | - | 5.01 | C+++ | E | ○ | ○ |
1.89 | Scandium oxide | Sc2O3 | 0.3-8 | 2383-2423 | - | 3.86 | - | E | ○ | - |
1.90 | Molybdenum oxide | MoO3 | - | 795 | 1155 | 4.7 | - | E,M | ○ | - |
1.90 | Samarium fluoride | SmF3 | - | 1306 | 2427 | 7.1 | T+ | E | ○ | - |
1.92 | Praseodymium oxide | Pr6O11 | 0.3-10 | - | - | - | - | W,E | ○ | - |
Stress
- C:Compressive stress
- T:Tensile stress
- +:Weak
- ++:Medium
- ++:Medium
- +++:Strong
Evaporation source
- E:E-gun
- W:Tungsten boat
- M:Molybdenum boat
- T:Tantalum boat
High refractive index material
Please see the list with your smartphone or
tablet lying down.
Refractive index | Product name | Chemical formula | Transmittance range(㎛) | MP (℃) | BP (℃) | Density (g/cm3) | Stress | Evaporation source | Granule | Pellet |
---|---|---|---|---|---|---|---|---|---|---|
2.00 | Indium oxide | In2O3 | 0.4-0.7 | decomposes at 700℃ | - | 7.18 | - | W,T,M.E | ○ | ○ |
2.00 | Tin oxide | SnO2 | - | 1127 | sublimes at approx. 1850℃ | - | - | W,E | ○ | ○ |
2.05 | Hafnium oxide | HfO2 | 0.25-5 | 2758 | - | 9.68 | T++ | E | ○ | - |
2.05 | Tantalum pentoxide | Ta2O5 | 0.3-10 | - | decomposes at 1470℃ | 7.3-8.2 | T++ | E | - | ○ |
2.05 | Zirconium dioxide | ZrO2 | 0.3-7 | 2700 | 4300 | 5.49 | T+ | E | ○ | ○ |
2.10 | Antimony trioxide | Sb2O3 | 0.3-1 | 656 | 1425 | 5.2 | - | E | ○ | - |
2.10 | Zinc oxide | ZnO | 0.3-8 | - | sublimes at 1720℃ | 5.61 | - | E | ○ | ○ |
2.13 | Cerium dioxide | CeO2 | 0.4-7 | 2600 | (sublimation) | 7.13 | C+ | W,E | - | - |
2.13 | OS-5 | ZrO2+TiO2 | 0.4-7 | - | 1250℃ and over | 4.5 | T+ | E | ○ | ○ |
2.15 | OH-40 | TiO2+La2O3 | 0.35-8 | - | 1250℃ and over | - | T+ | E | ○ | - |
2.15 | Neodymium oxide | Nd2O3 | 0.2-2 | 2192-2310 | 1250℃ and over | 7.24 | - | E | ○ | - |
2.20 | Niobium pentoxide | Nb2O5 | - | 1520 | 1250℃ and over | 4.3-5.2 | T+ | E | ○ | - |
2.24 | Chromium oxide | Cr2O3 | 0.6-8 | 2435 | 4000 | 5.21 | - | W,E | ○ | ○ |
2.30 | Zinc sulfide | ZnS | 0.4-15 | 1800-1900 | sublimes at 1180℃ | 4.09 | C++ | M,E | ○ | - |
2.35 | Dititanium trioxide | Ti2O3 | 0.4-10 | - | decomposes at 2130℃ | 4.6 | T+++ | W,E | ○ | ○ |
2.35 | Trititanium pentoxide | Ti3O5 | 0.4-10 | - | 1250℃ and over | 4.2 | T+++ | W,E | ○ | ○ |
2.35 | Titanium monoxide | TiO | 0.4-10 | 1750 | 3000℃ and over | 4.93 | T+++ | W,E | ○ | - |
2.35 | Titanium dioxide | TiO | 0.4-10 | 1825 | decomposes at 3000℃ and over |
4.17 | T+++ | E | ○ | ○ |
3.4(2μm) | Silicon | Si | 0.9-10 | 1414 | 2642 | 2.34 | T++ | W,E | ○ | - |
4.4(2μm) | Germanium | Ge | 1.5-4 | 959 | 2691 | 5.4 | - | W,M,T,E | ○ | - |
Stress
- C:Compressive stress
- T:Tensile stress
- +:Weak
- ++:Medium
- ++:Medium
- +++:Strong
Evaporation source
- E:E-gun
- W:Tungsten boat
- M:Molybdenum boat
- T:Tantalum boat
Metal
Please see the list with your smartphone or
tablet lying down.
Refractive index | Product name | Chemical formula | Transmittance range(㎛) | MP (℃) | BP (℃) | Density (g/cm3) | Stress | Evaporation source | Granule | Pellet |
---|---|---|---|---|---|---|---|---|---|---|
- | Silver | Ag | - | 962 | 2184 | 10.5 | T+ | M,T,E | ○ | - |
- | Aluminum | Al | - | 659 | 2270 | 2.7 | - | W,E | ○ | - |
- | Gold | Au | - | 1063 | 2710 | 19.3 | T+ | W,M,E | ○ | - |
- | Chromium | Cr | - | 1890 | 2212 | 7.2 | T++ | W,E | ○ | - |
- | Copper | Cu | - | 1085 | 2580 | 8.93 | T+ | W,M,T,E | ○ | - |
- | Hafnium | Hf | - | 1700 | - | 13.3 | - | E | ○ | - |
- | Indium | In | - | 156 | 2100 | 7.3 | - | W,M,E | ○ | - |
- | Molybdenum | Mo | - | 2610 | 4800 | 10.2 | T++ | 10.5 | ○ | - |
- | Nickel | Ni | - | 1455 | 2721 | 8.85 | T++ | W,E | ○ | - |
- | Platinum | Pt | - | 1773 | 3800 | 21.4 | T++ | W,E | ○ | - |
- | Tantalum | Ta | - | 2996 | 5300 | 16.6 | - | E | ○ | - |
- | Titanium | Ti | - | 1675 | 3262 | 4.54 | C/T+ | W,T,E | ○ | - |
- | Tungsten | W | - | 3387 | 5900 | 19.1 | - | E | ○ | - |
Stress
- C:Compressive stress
- T:Tensile stress
- +:Weak
- ++:Medium
- ++:Medium
- +++:Strong
Evaporation source
- E:E-gun
- W:Tungsten boat
- M:Molybdenum boat
- T:Tantalum boat
Functional material
Please see the list with your smartphone or
tablet lying down.
Refractive index | Product name | Chemical formula | Transmittance range(㎛) | MP (℃) | BP (℃) | Density (g/cm3) | Stress | Evaporation source | Granule | Pellet |
---|---|---|---|---|---|---|---|---|---|---|
- | ITO | In2O3+SnO2 | 0.4-7 | Transparent conductive film | - | - | - | E | ○ | - |
- | MS-DC100 | - | - | Water repellent material | - | - | - | W,M,T,E | - | ○ |
- | MS-SY | - | - | Super Hydrophobic material | - | - | - | W,M,T,E | - | ○ |
Stress
- C:Compressive stress
- T:Tensile stress
- +:Weak
- ++:Medium
- ++:Medium
- +++:Strong
Evaporation source
- E:E-gun
- W:Tungsten boat
- M:Molybdenum boat
- T:Tantalum boat
